User Guide

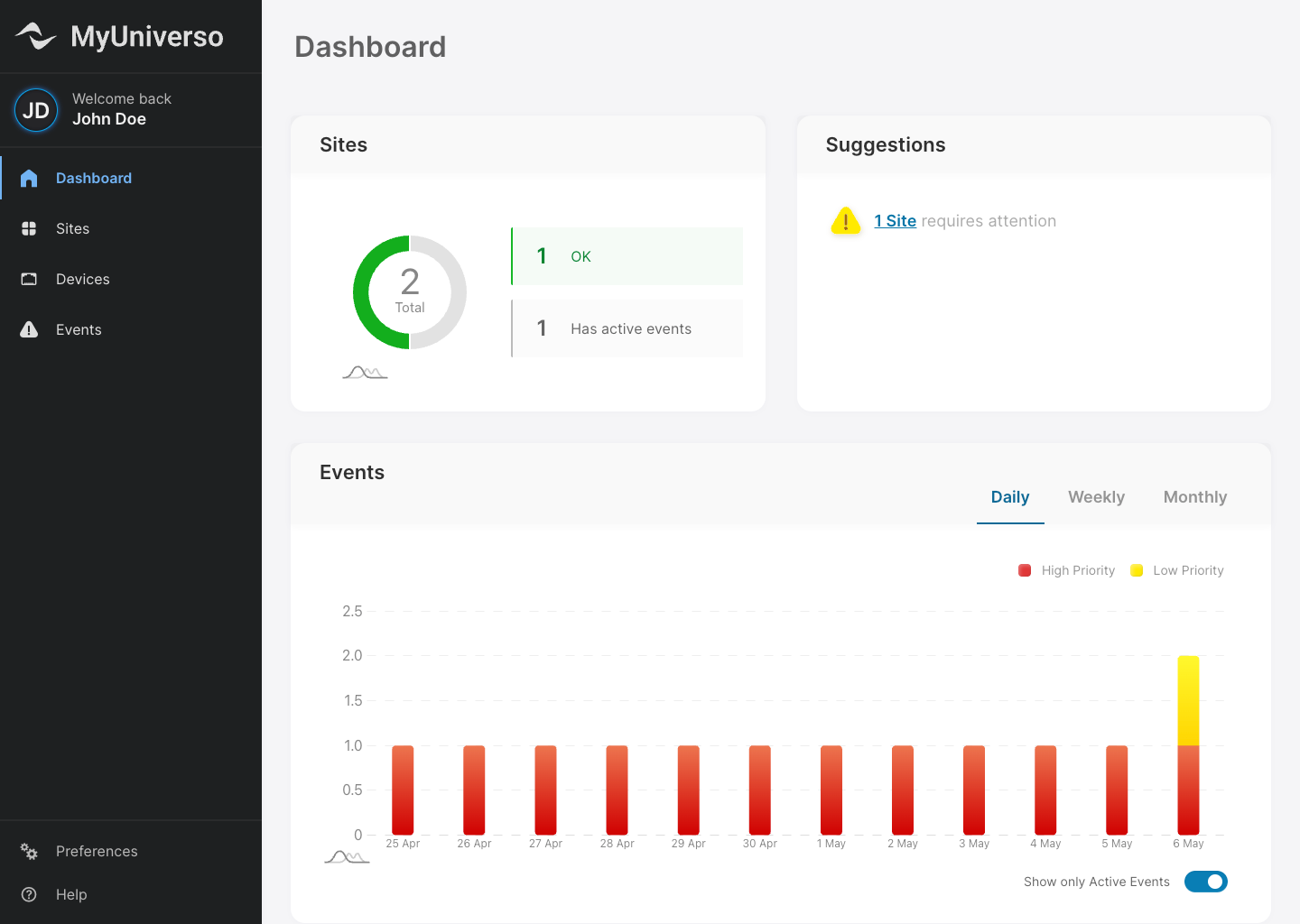

The Dashboard page resumes informations about sites health, the trend of their events and the suggested actions to take.

Sites Widget:

The Sites widget provides information about the number of sites that your account is managing, and indicates how many of these are having active events. When these are detected, the corresponding part of the widget links to the filtered 'Sites' page. By displaying the total number of sites, you can immediately assess the scope of your account's site coverage.

Suggestions Widget:

This widget provides actionable suggestions based on system analysis.

Events Widget:

The Events widget displays data trends for each site under your management.

You can sort the data based on different time frames, including daily, weekly, and monthly intervals. Furthermore, you can specify a custom time range using the date picker located in the upper left corner. The widget provides valuable insights into the performance and activity of your sites over time, you can identify patterns, anomalies, and potential areas of concern. You can access the 'Events' page focused on a bar time frame clicking on it.

The 'Sites' page serves as a hub that consolidates information about all your sites. This page offers two distinct views: the List view and the Map view, each providing unique perspectives on your sites.

List view:

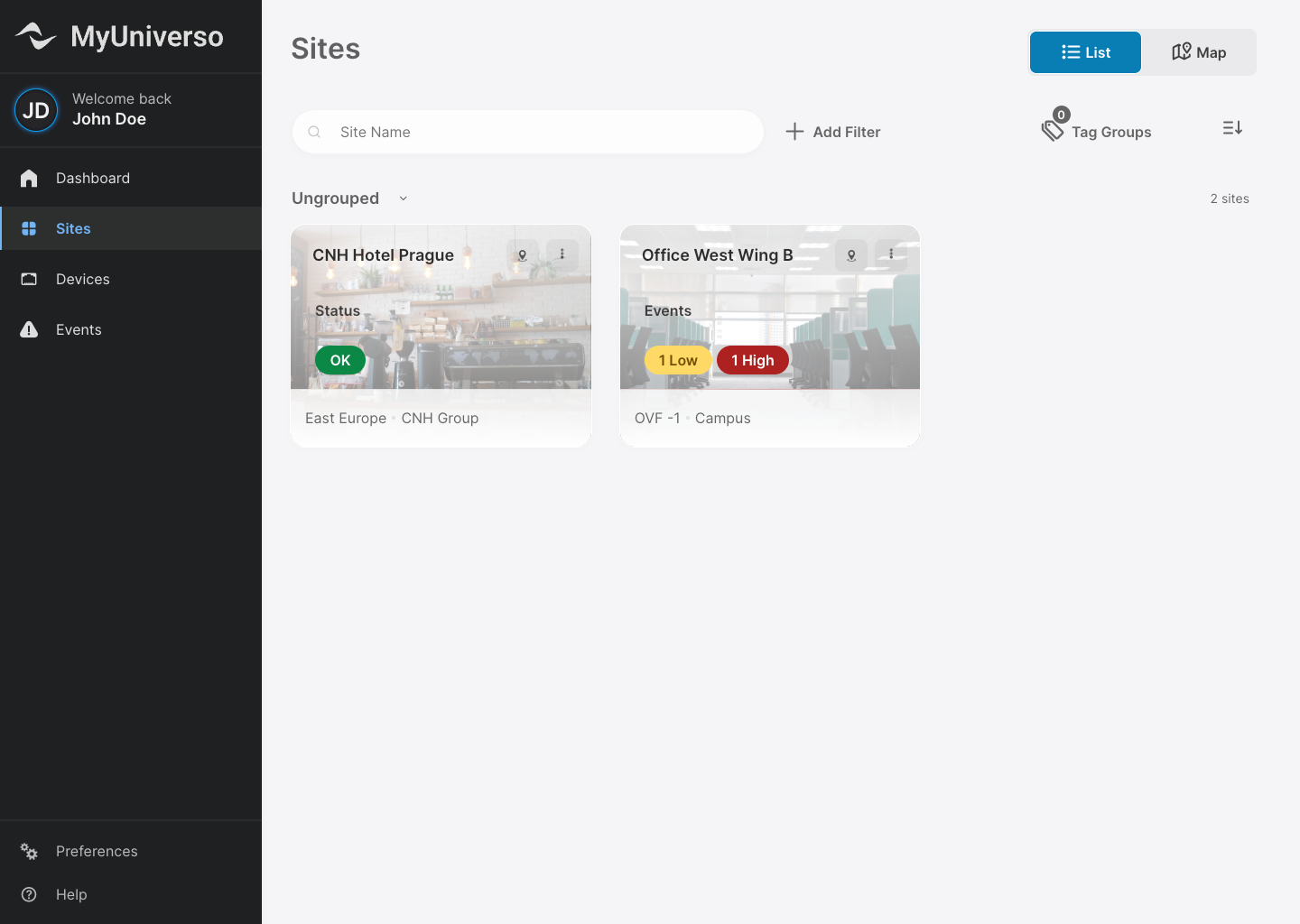

The List view of the 'Sites' page shows all of your sites sorted, by default, in ascending alphabetical order.

To further enhance organization and categorization of the list view, you can utilize the tag grouping feature, here is how it works:

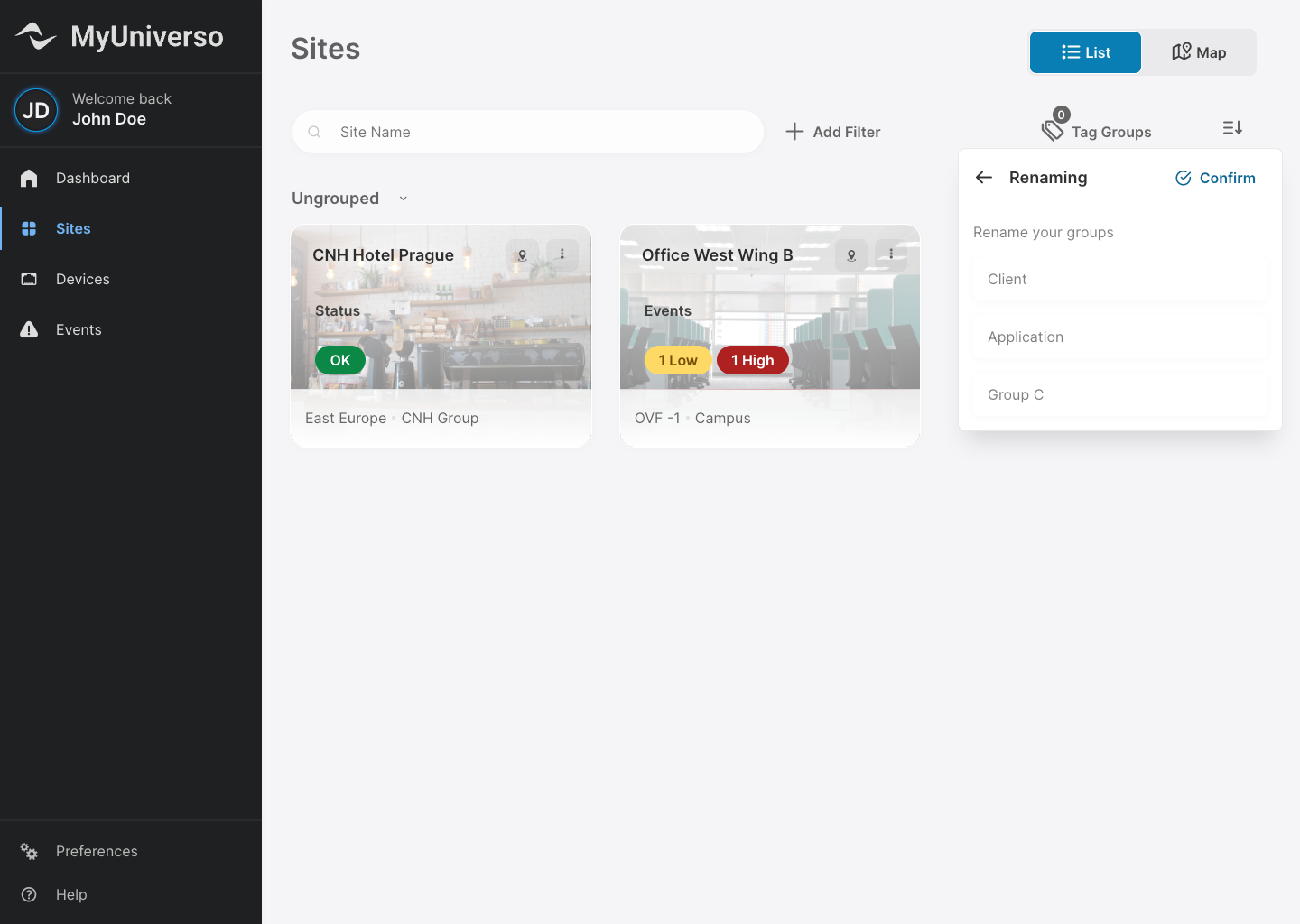

• Rename Tag Groups: rename the three default groups to match your tag preferences. This operation ensures that the groups align with specific categorization needs.

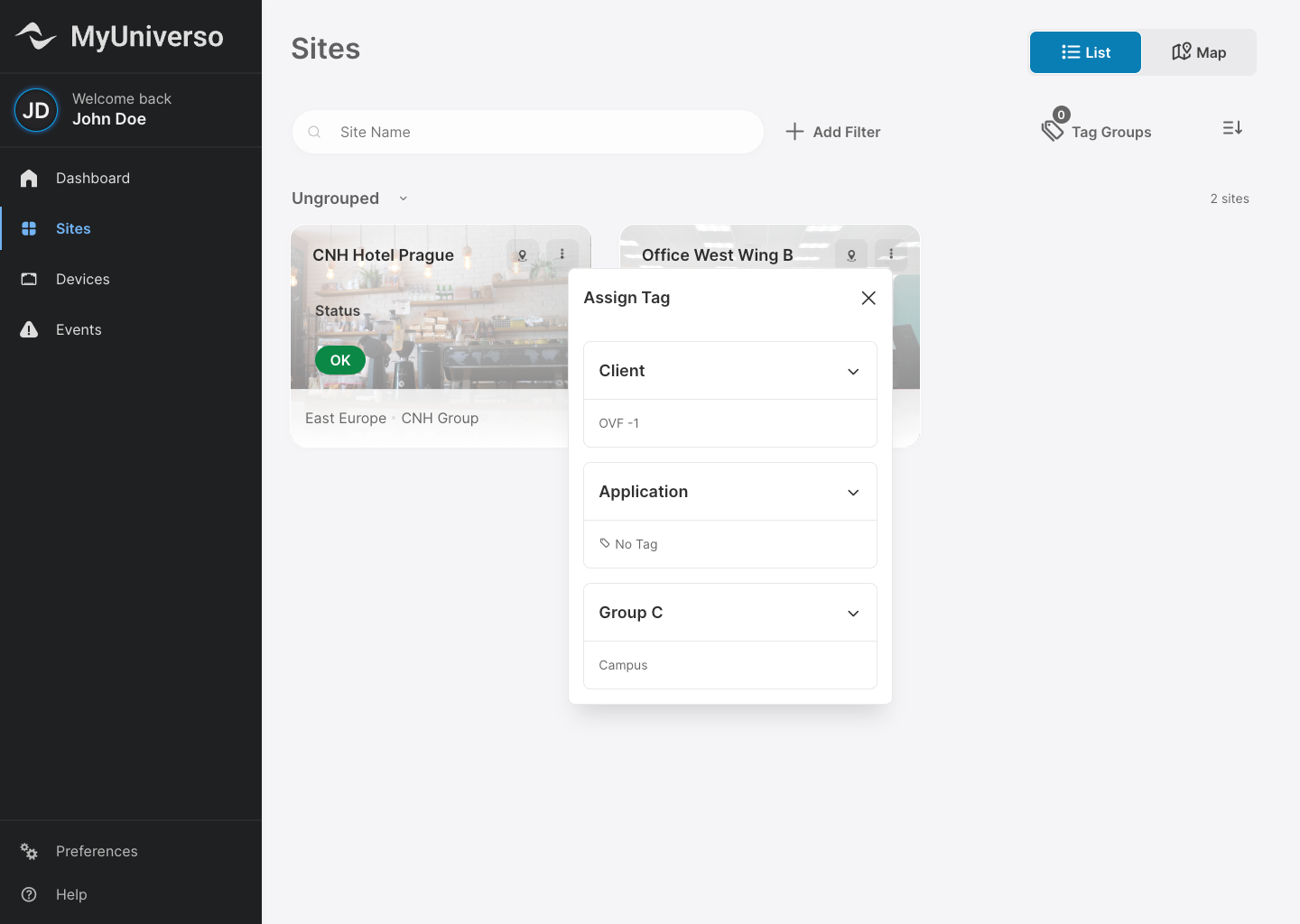

• Assign Tags to you sites: open the three dots menu on the top right corner of the site card and select the "Assign Tag" option, create a new tag for the target group and select it.

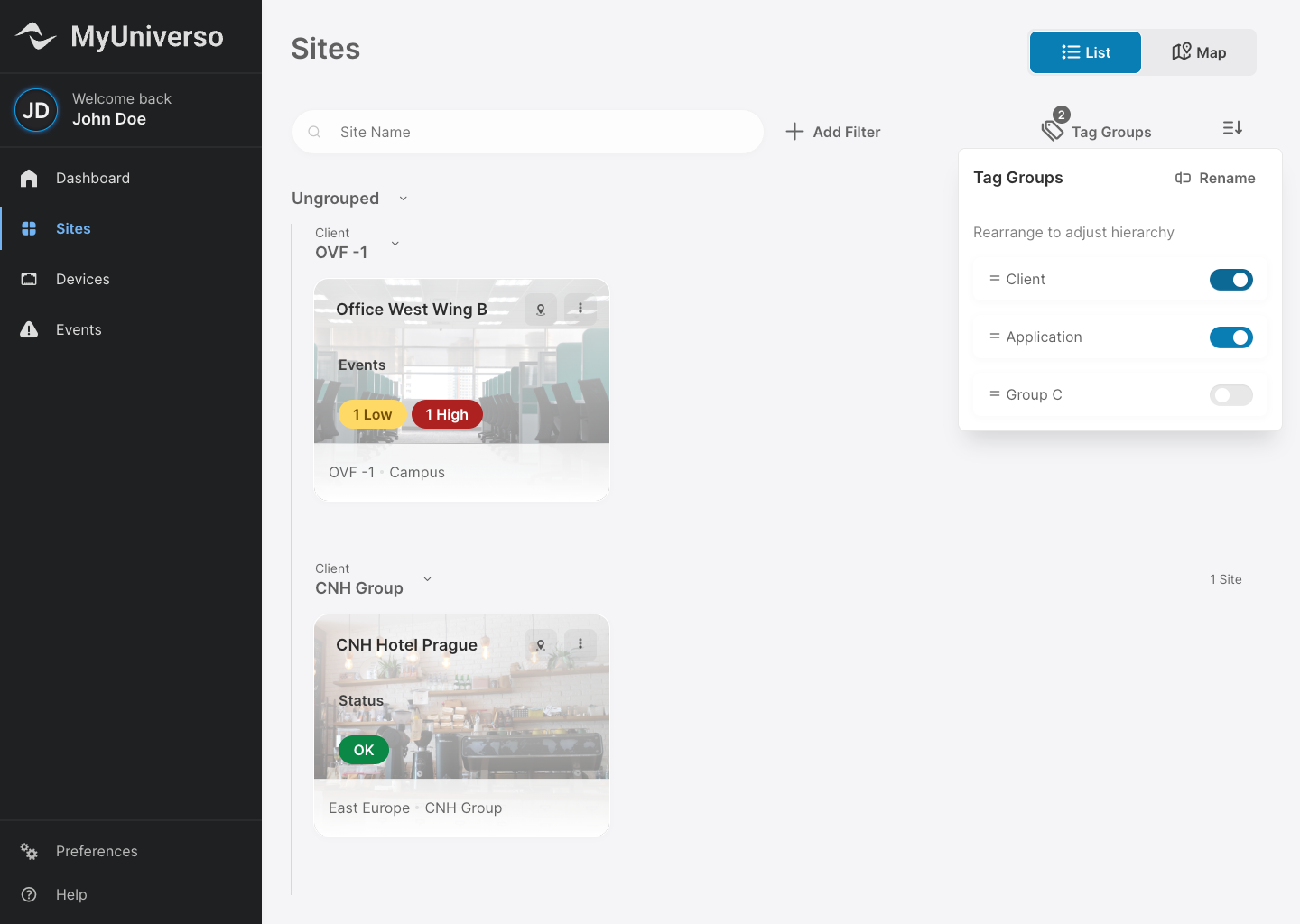

• Activation: Once you have defined your desired groups, you can activate them to affect the listing visualization of sites on the page. Activating a group will dynamically organize the sites based on their assigned tags, providing a more structured and organized view.



• Hierarchical Ordering: The tag groups can be hierarchically ordered to concatenate their relevance in the listing view. By dragging groups slots up and down in the list, you can define their nesting hierarchy.

Map view:

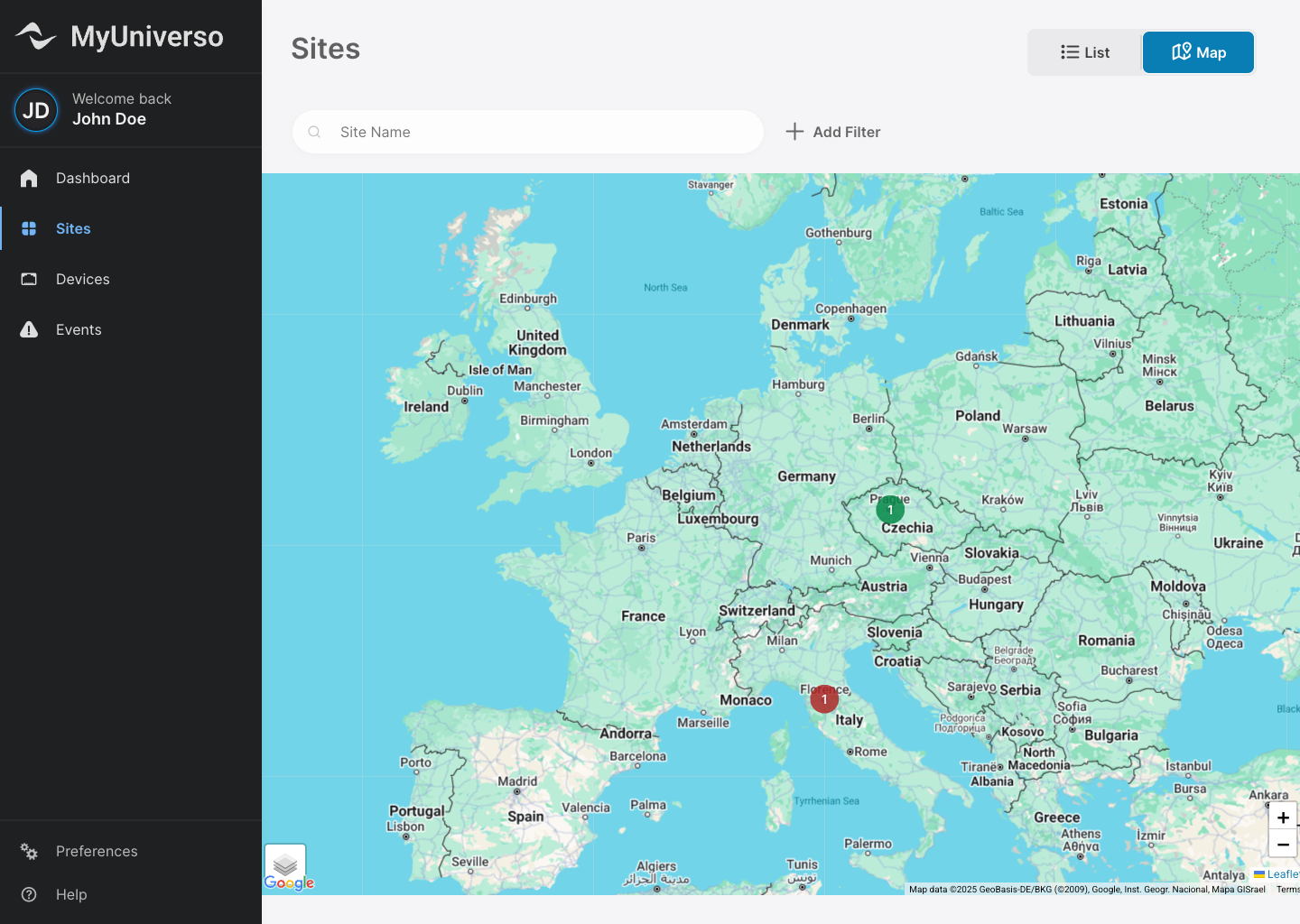

The map view offers a visual and interactive way to explore and interact with your sites based on their geographical locations. The location information of a site is inherited from ArmonìaPlus. However If a site's location is not specified in ArmonìaPlus, you can add it in MyUniverso.

Refer to the section Add / Edit GPS location for a detailed explanation of the process. Each site is represented by a map pin, the color of the pin reveals the presence of active events in the site. Green pins indicate no active events, yellow pins indicate low priority active events, and red pins indicate high priority active events.

Searchbar and Filters

The search bar of the Sites page enables users to easily find specific sites by typing the site's name.

As letters get typed, the search function automatically filters and displays all sites with matching letters in their names.

In addition to the search bar, there are three filters available for further refining your site search:

1. "With Active Events": This filter displays all sites that currently have ongoing active events. It allows you to quickly identify and focus on sites that require immediate attention due to active events taking place.

2. "Address Contains [...]": By entering specific address information in the central area of this filter, you can search for sites based on their addresses. The address information is inherited from ArmonìaPlus, but it can also be edited or added using a dedicated feature, which will be explained in more details in section Add/Edit Location

3. "Tag Is [...]": This filter allows you to search for sites based on their assigned tags.

   Tags are a powerful organizational tool that can be used to categorize and group sites. For more information on the tagging feature, please refer to sections Assign Tags and Tag grouping.

Site Card

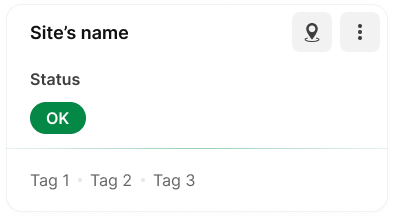

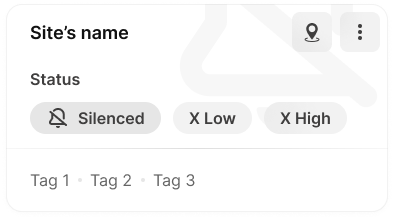

Each site is represented by a card, which displays specific information about the site. The card is divided into sections, as reported in the picture 1.card.

1.card

Site's name is heading the element, sided by the Location Icon, leading to Address information and map's position, and the three dots menu icon, including all site's feature (listed below).

Site's status is shown at the center of the card, where a color coded element suggests the presence of active events in the site.

The bottom section shows the site's active tags.

Sites Statuses

Sites can assume the following statuses:

• OK: The site has no active events ongoing

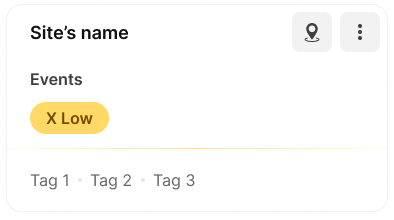

• LOW: The site has "X" low priority active events



• HIGH: The site has "X" high priority active events

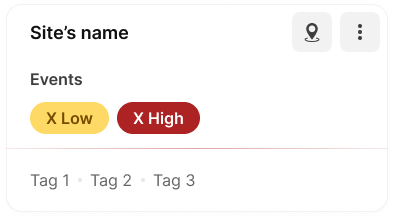

• LOW & HIGH: The site has "X" low and "X" high priority active events



• CRITICAL: the number of channels with at least one high priority event, or belonging to a device with one high priority event or offline, is equal to, or exceeds, the 50% of the total amount of channels of the site's devices



• OFFLINE: the communication with every device of the site is offline



• SILENCED: All notifications from the site are turned off



Sites Features

Open the three dots menu to access the following sites features.

Select many

Enables multiple selection of sites for assigning tags or silence/enable notifications simultaneously.

Assign Tags

You can assign up to three tags for each site, this feature will help you organize the listing of your sites. As mentioned in the List View section, you can hierarchically arrange the priority of the Tag Groups to nest the visualization of the corresponding tagged sites. Additionally, it is possibile to search sites by assigned tags.

Site Image

You can set a background image for the site's card. Images can be selected from a predefined group of Unsplash's library selection, uploaded from your device or embedded by their web link.

DMD Controls

You can access site's DMD controls page, where you can granularly edit all settings.

Rename

Use this feature to change the name of your sites. Bear in mind that renaming a site in MyUniverso will change also the cloud project's name in ArmonìaPlus.

Sharing

This feature allows you to invite other members to collaborate on your sites. You can send an invitation to another user using her email or MyPowersoft account name Invited users need to have a MyPowersoft account in order to access to MyUniverso.

Silence Site

When a site is silenced, all notifications for that site are disabled.

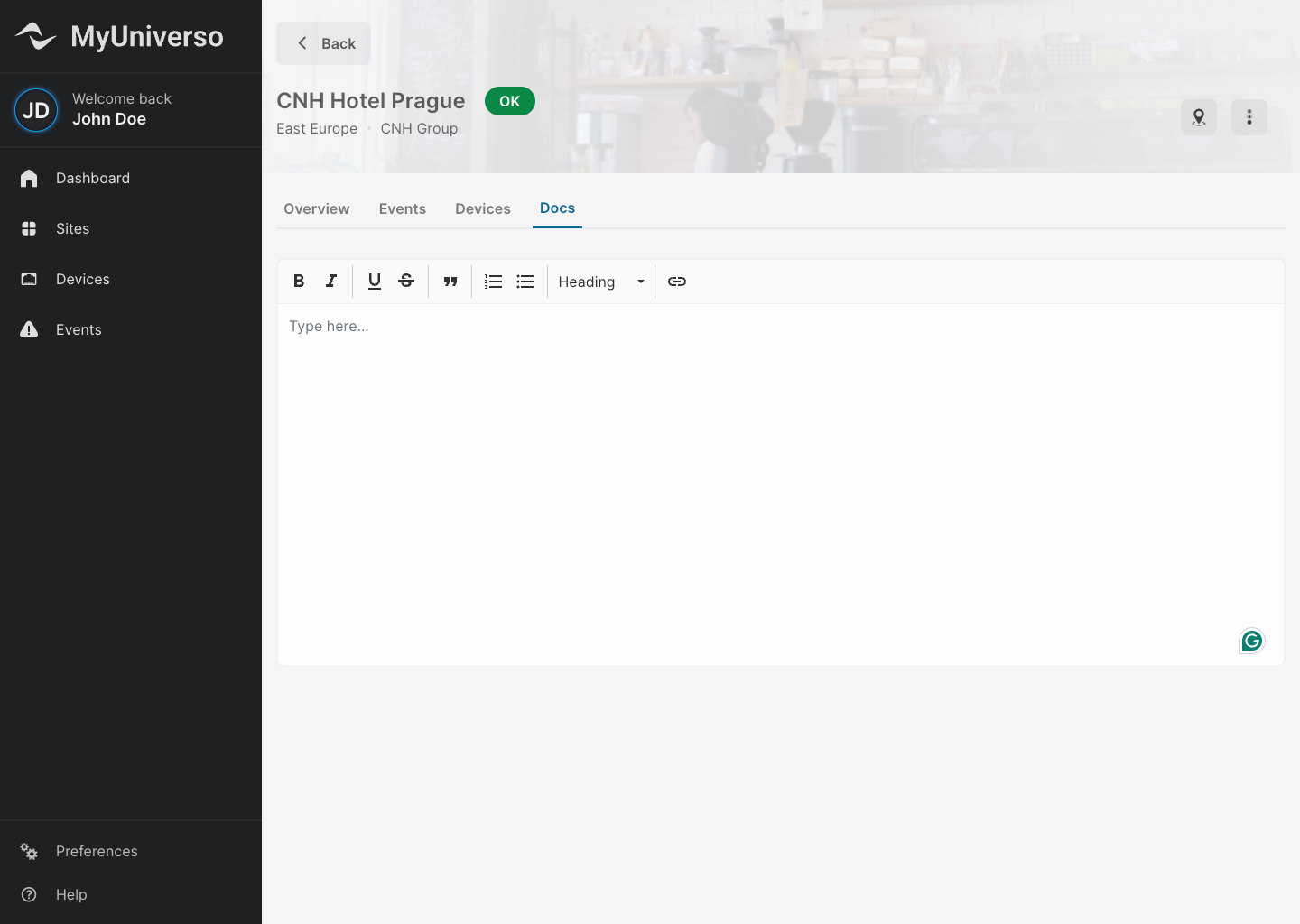

Click on a site card to reach its details page. The page is structured in four tabs: Overview, Events, Devices and Docs.

Overview Tab:

Overview tab displays general information about the site, including devices status, rack grouping and headroom history.

Rack grouping reports the rack settings edited in ArmonìaPlus, in this tab they serve as a link to the filtered devices tab, including information about rack's devices health, power and current draw. Racks including Unica series will display ambient temperature too.

Headroom history chart keeps track of the lowest headroom value registered in the site every day, showing trends on site's

Devices tab:

This page serves as a centralized location to view and manage all devices associated with the site. With the search options and detailed device information available, you can easily find and take actions related to specific devices, ensuring their optimal performance.

You can search for devices by typing their name in the searchbar.

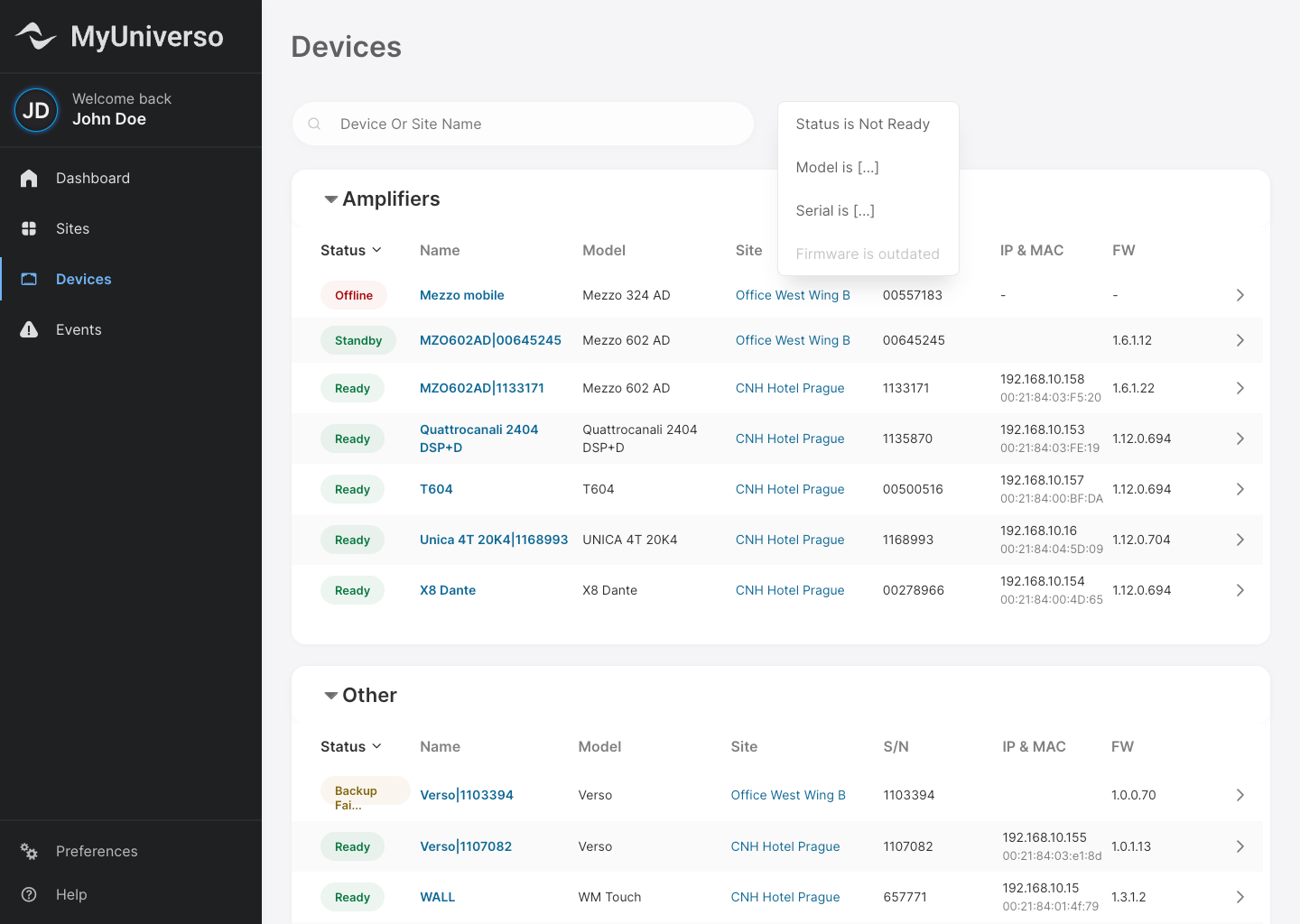

Additionally, there are four filters available for more targeted searches:

1. "Status not OK" returns devices with ongoing active events.

2. "Model is ..." allows searching devices by their model.

3. "Serial is…" allows searching devices by their serial number.

4. "Firmware is outdated" filter all the devices with an outdated firmware and prompts their selection for update.

Racks section includes racked devices and displays additional information like rack's power and current draw, it works as a filter for the table too. Rack grouping can be edited in ArmonìaPlus by … , unracked devices will be displayed in a "Not Racked" element, including available additional informations.

Devices are listed in two tables, the first includes amplifiers, the second all other devices like Verso, Wall Mount Touch and PC ViewsHost.

Columns of both tables are:

• Status (the status of the device, for a comprehensive list of all devices statuses refer to table 2 Devices Statuses)

• Name (the device name edited in ArmoníaPlus)

• Model

• Serial Number

• IP & MAC Addresses (Not available when offline)

• Firmware version (Not available when offline)

The last column includes an arrow to access the device details and info specifications.

The last column includes an arrow to access the device details and info specifications.

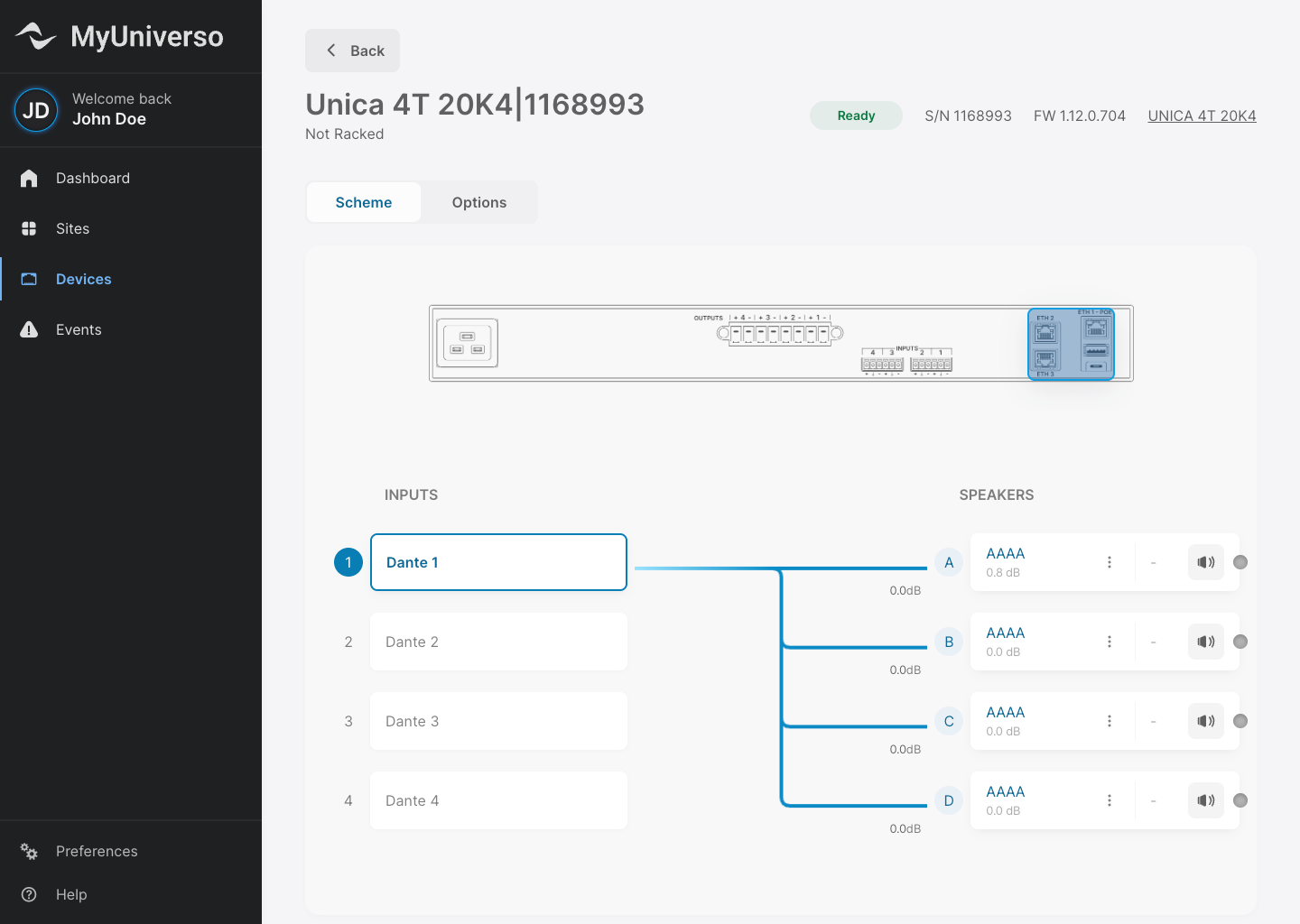

The Device Info page provides detailed information about the devices connections and their settings. The header section of the page reports: device and rack name (assigned in ArmoníaPlus), status, serial number, firmware version and model (external link to online documentation).

The Device Info page provides detailed information about the devices connections and their settings. The header section of the page reports: device and rack name (assigned in ArmoníaPlus), status, serial number, firmware version and model (external link to online documentation).

Scheme Tab

Scheme tab offers a visual representation of the signal path by hovering or clicking on inputs and speakers. The rear panel is highlighted accordingly, and speakers include LED indicators for their status. You can also magnify specific parts of the rear panel by hovering over them.

When an output related active event is detected the corresponding led gives caption to event and highlights a color coded led.

Preset Gain & Mute

You can access this option by the three dots menù on the speaker, from here you can adjust the gain or mute the way of the speaker.

Speaker Preset Change

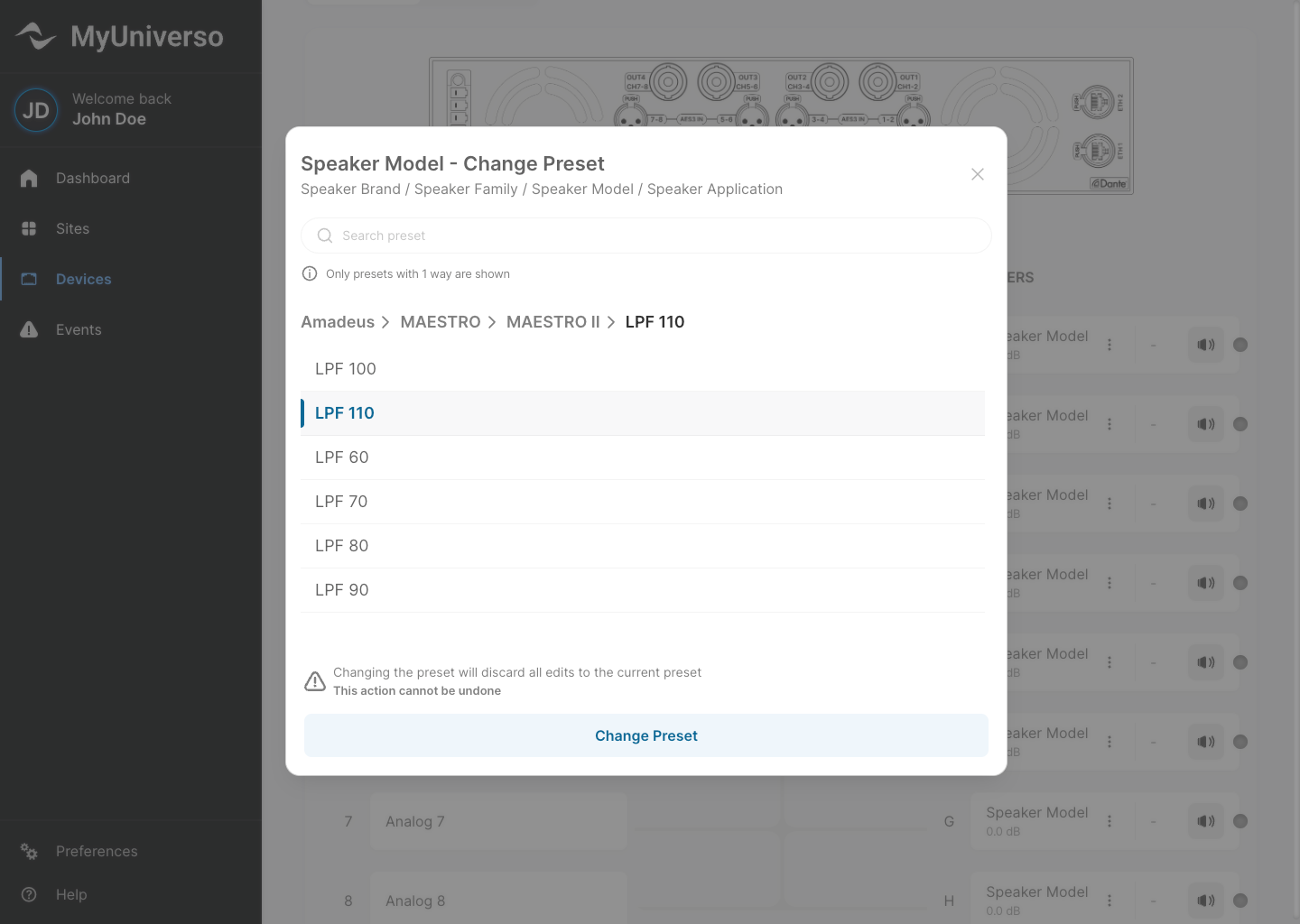

The Change Preset option allows to remotely change the speaker preset. The operation is allowed only for presets with the same number of ways, it won't be possible to change a preset with a different number of ways.

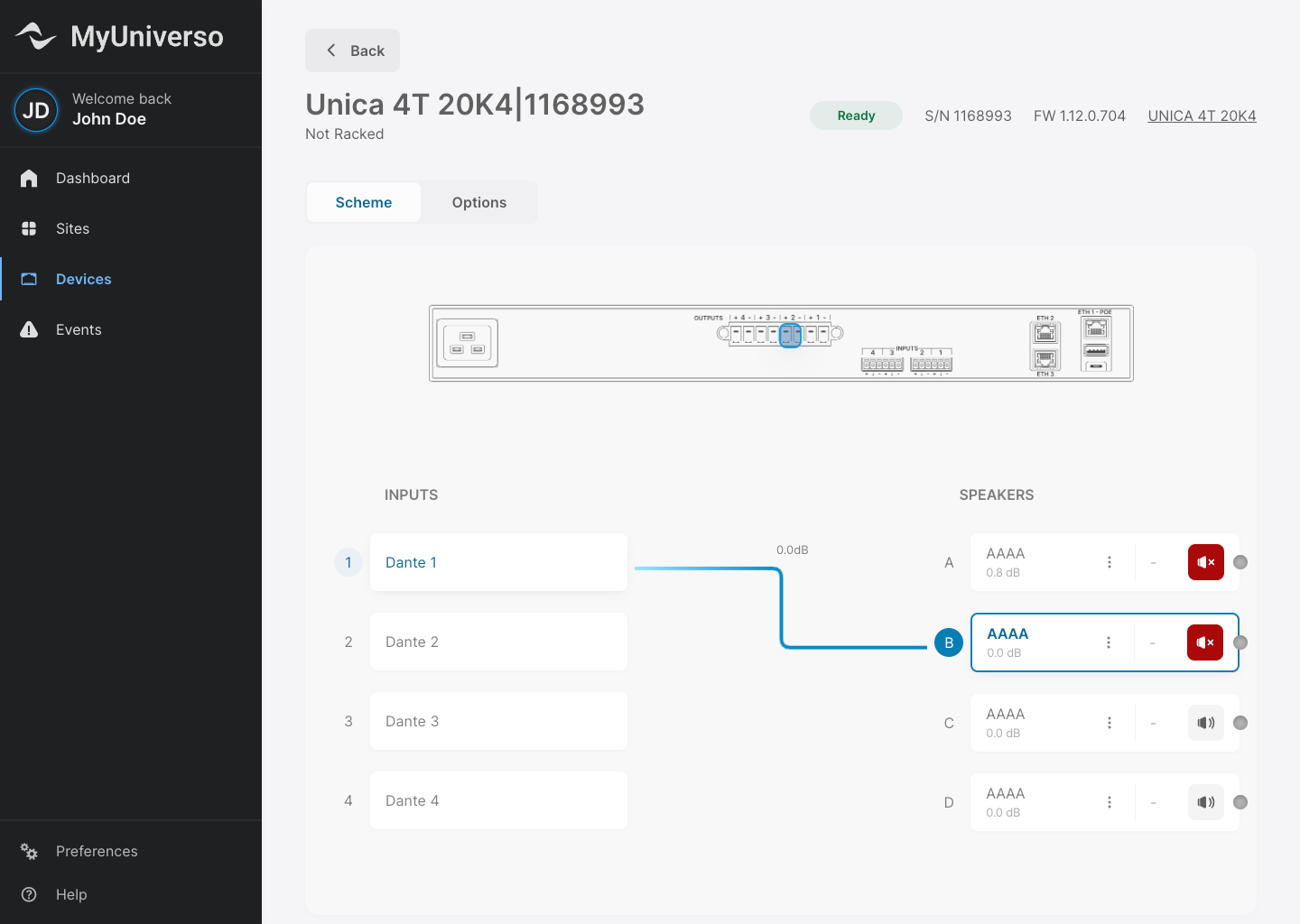

Speaker Preset Mute

The mute button placed at the right end of the speaker mutes/unmutes the entire speaker

Options Tab

The Options tab contains a selection of ArmonìaPlus settings that can be viewed or modified. Each amplifier model has its own specific set of settings, allowing for tailored configuration based on the hardware in use. The settings are mostly grouped in General, Network and Audio over IP sections.

DMD controls allows you to remotely edit and control DMD systems. The menu option leads to a specific page where all controls are included.

The page header allows users to turn the system on and off, the rest of the page is structured in three tabs: Zones, Sources and Scenes

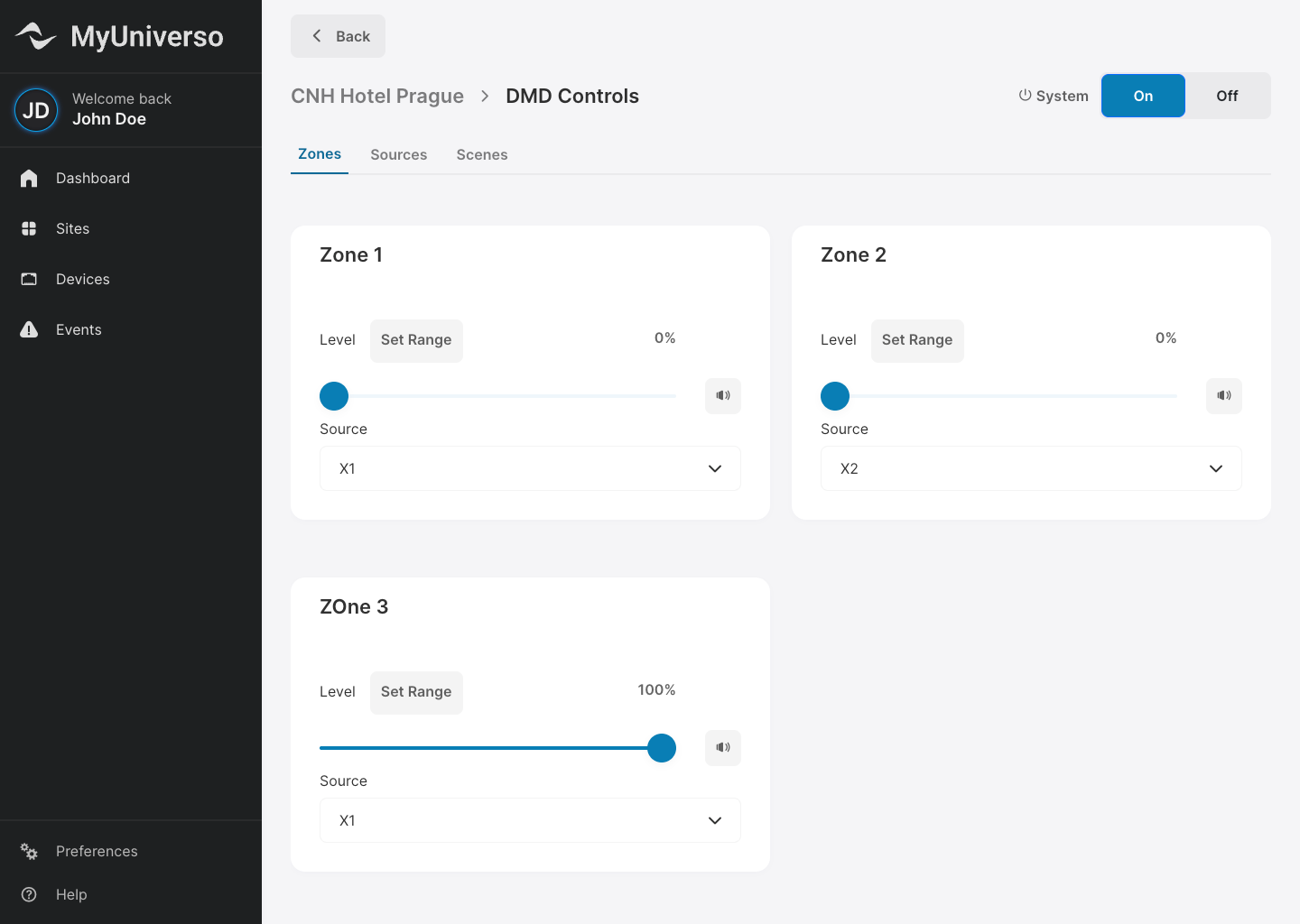

Zones

All zones settings are included in this tab, for each zone it is possibile to:

• Edit and mute the gain of the zone

• Edit the gain range for the zone

• Select the source for the zone

• Edit the gain of the subzones

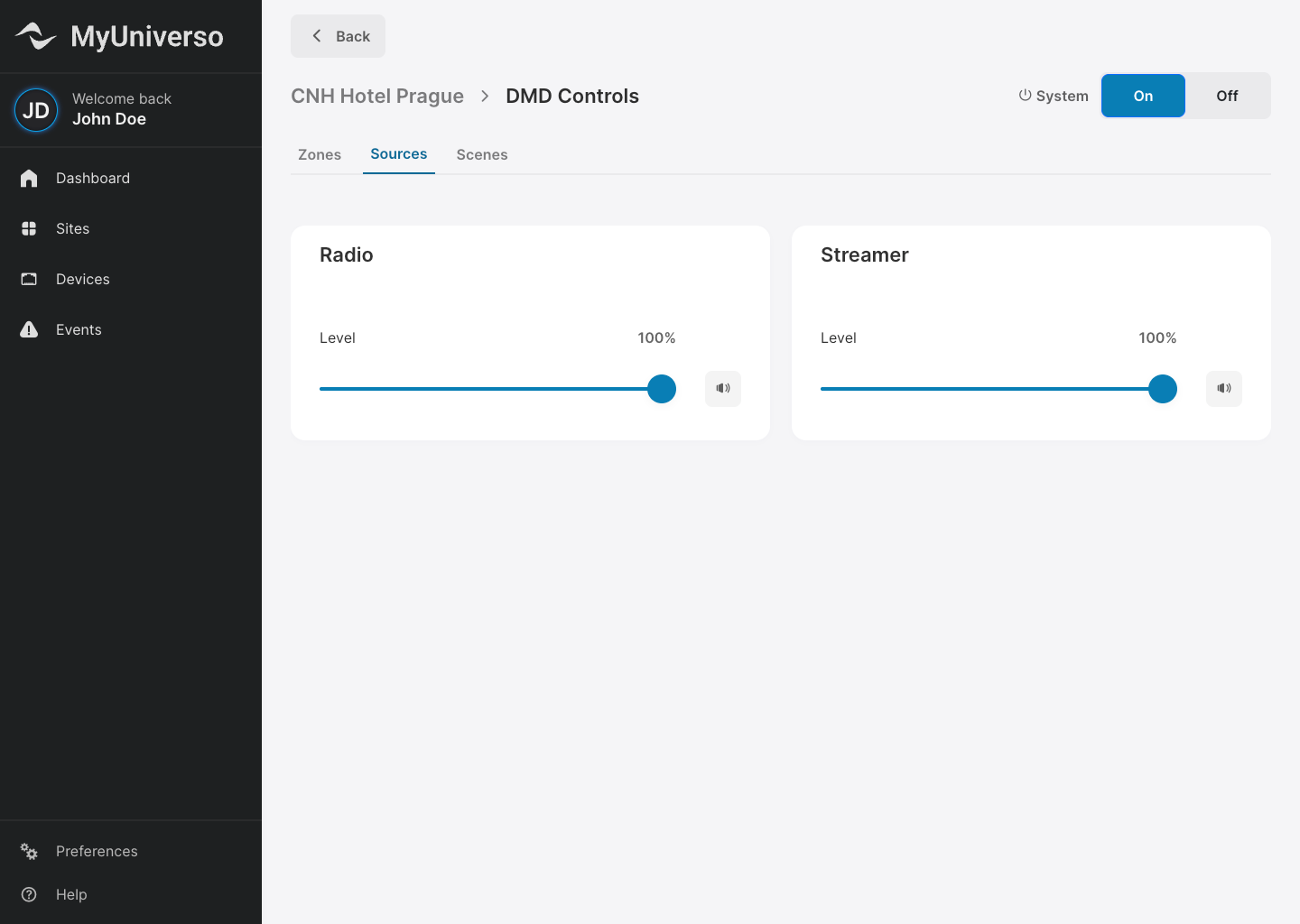

Sources

This tab lists all available sources and allows the editing of their gain level

Scenes

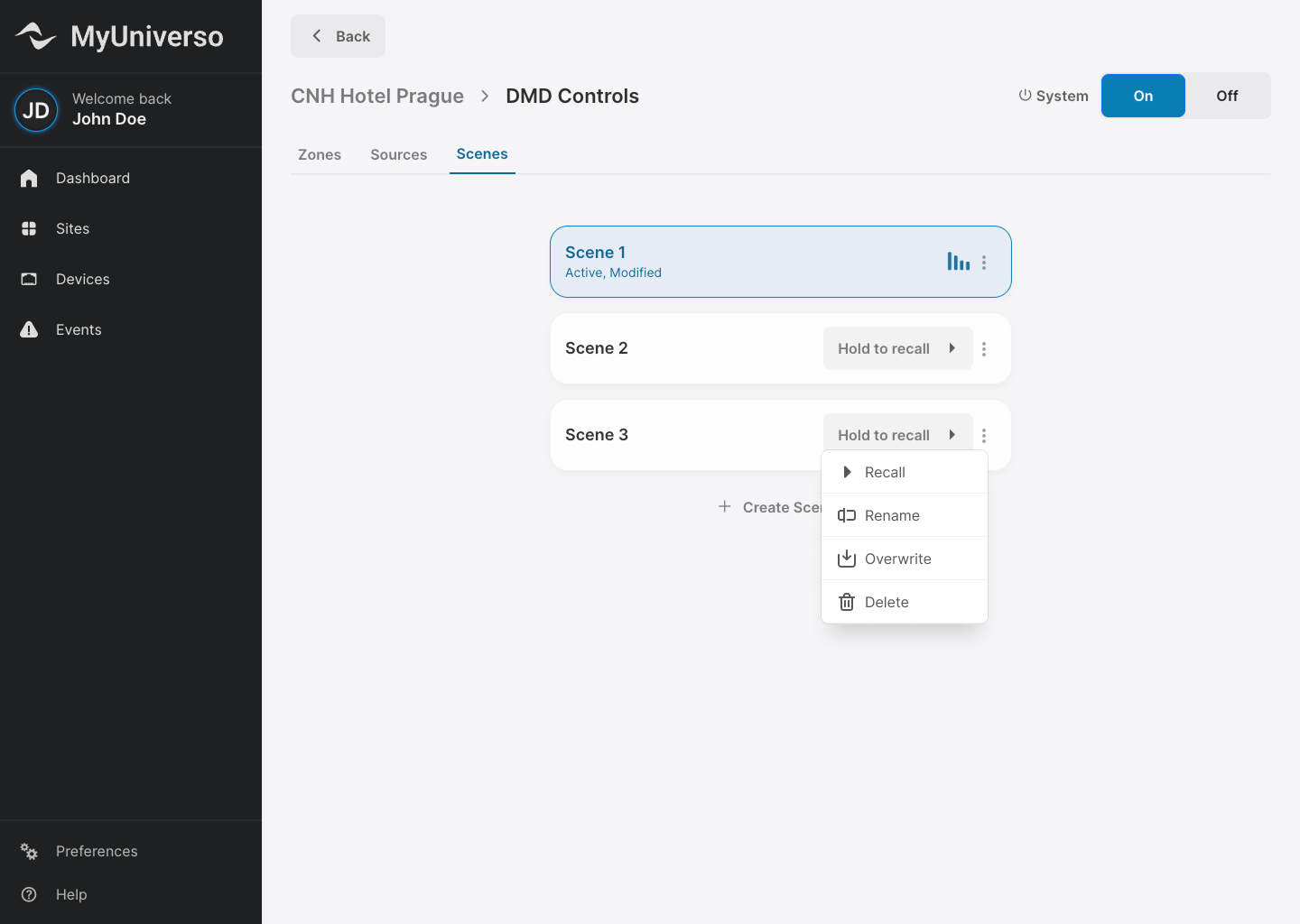

Scenes tab lists all the scenes and allows to create new. Scenes can be recalled, renamed, overwritten or deleted by accessing the three dots menu placed on the right of the scene element.

Devices page has the same structure and functionalities of the Device tab inside Site Details's Page, with the main difference that this page shows data regarding all the devices of all sites managed by the account.

You can search for devices by typing their name in the searchbar.

Additionally, there are three filters available for more targeted searches:

1. "Status not OK" returns devices with ongoing active events,

2. "Model is ..." allows searching devices by their model

3. "Serial is …" allows searching devices by their serial number

4. "Firmware is outdated" filter all the devices with an outdated firmware, this filter is available only when there is at least one amplifier to update.

The table listing all the devices in this page includes an additional column including a link to the corresponding site of the device.

You can access devices info page by clicking on either the device name and the device's row rightmost arrow.

Firmware update

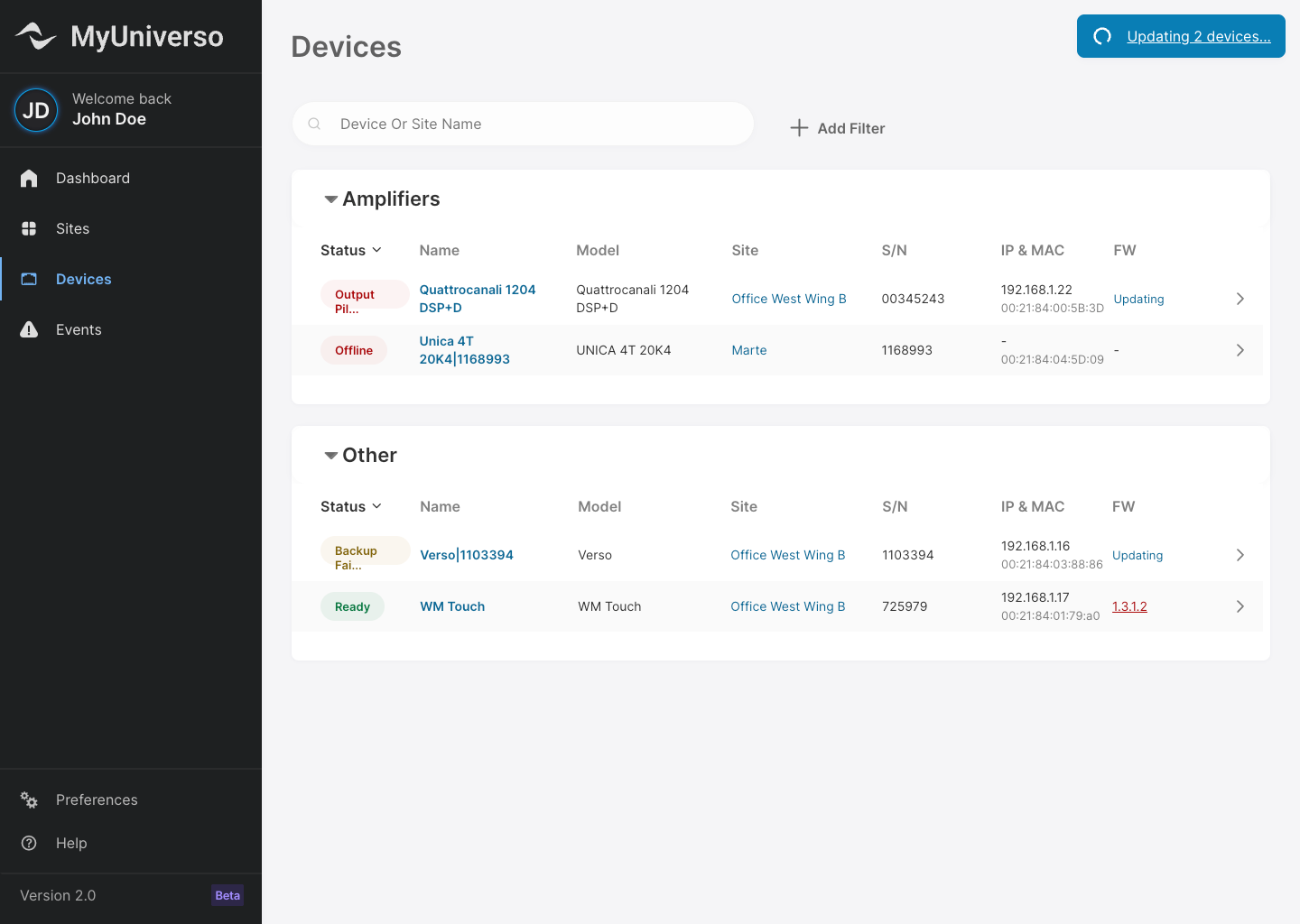

When a new firmware becomes available for one or more devices, the platform will suggest the update by either reporting the operation inside the suggestions widget and by highlighting the outdated status inside the Devices table.

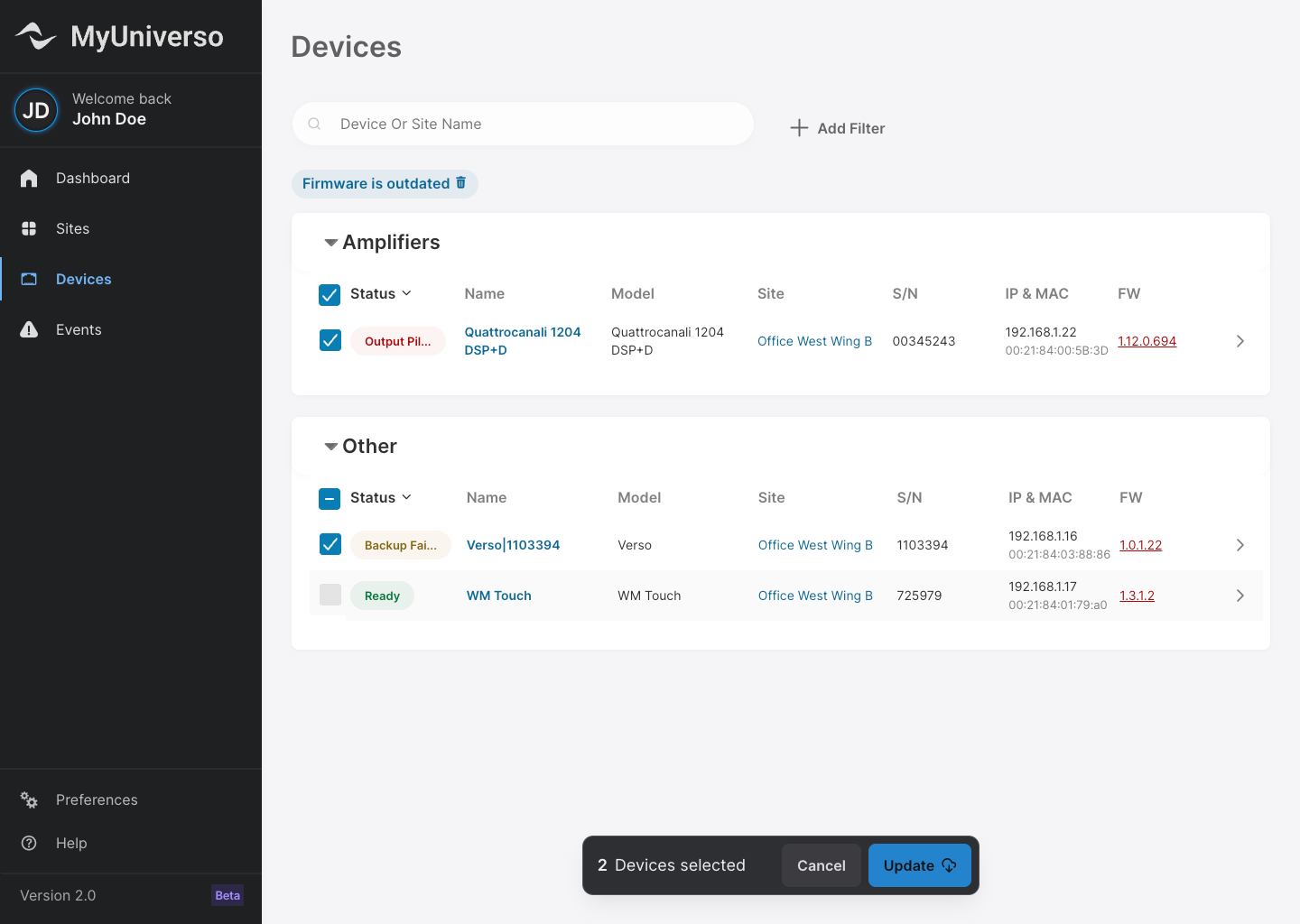

The process can be prompted individually, by clicking on the single outdated firmware version, or collectively, by engaging the filter in the Devices page and selecting the target devices to update simultaneously.

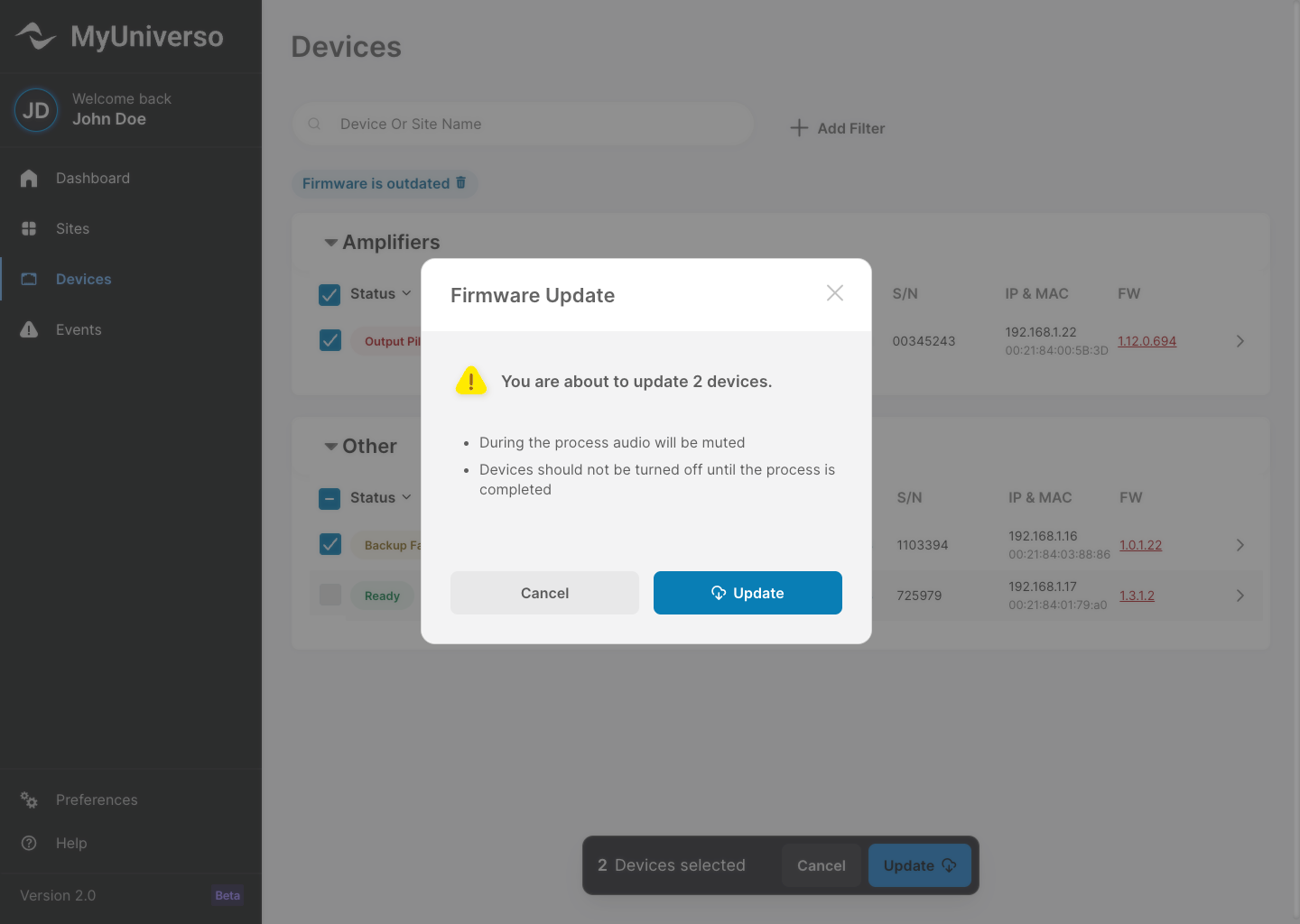

Once the selection has been made, you can confirm the operation and proceed with the update. When the process completes the updated firmware versions will be shown in green with a checkmark icon next until the green notification on the upper right is dismissed.

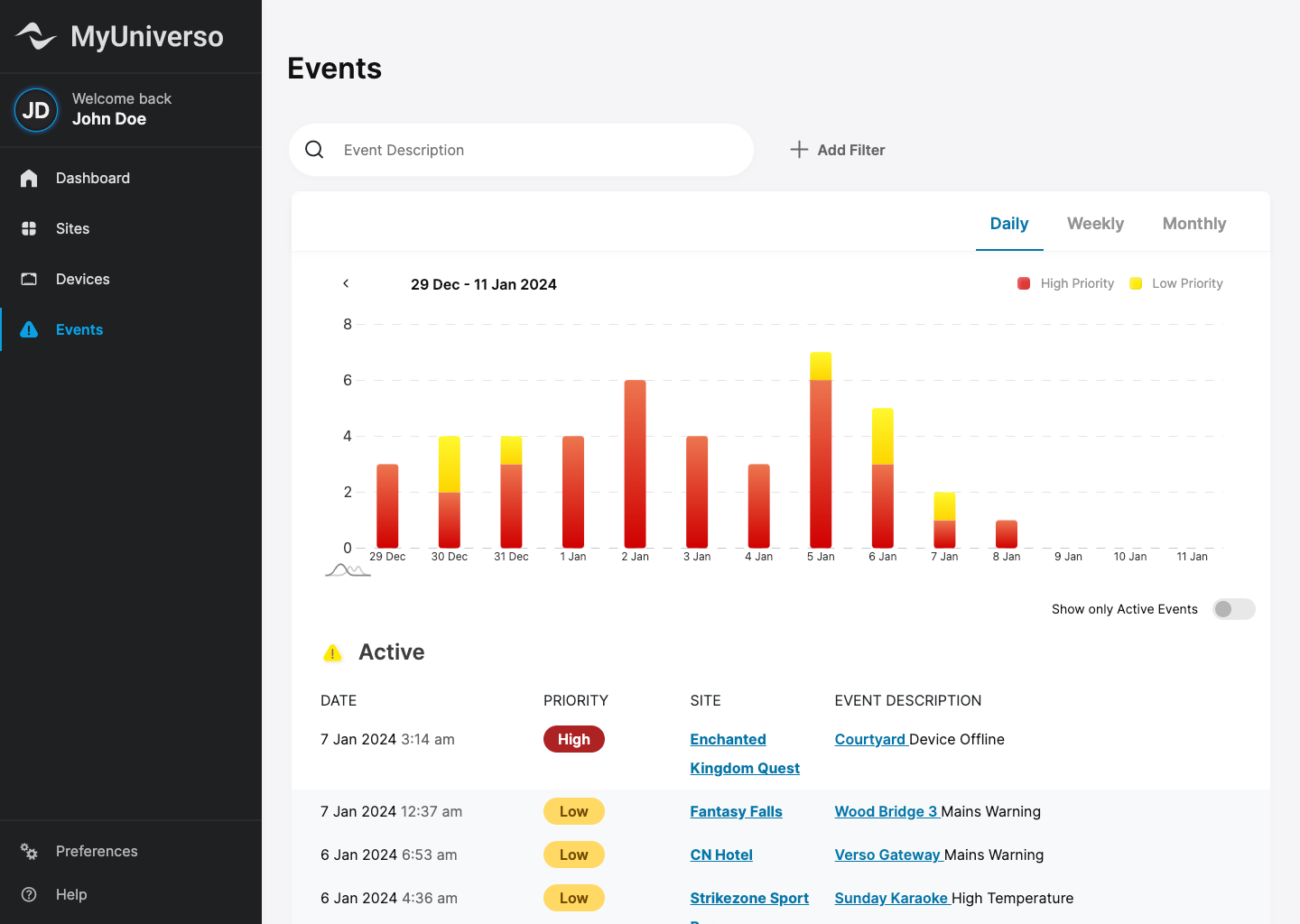

Events has the same structure and functionalities of the Events tab, with the main difference that this page displays data gathered from every site and device. As for Devices Page, in this page's table you will find an additional column linking the corresponding device's site.

Use the searchbar to search for specific events by typing their description or applying filters such as "High" and "Low" priority. For a comprehensive list of Events occurring in MyUniverso refer to Table 1 MyUniverso Events.

For a complete list of all the events occurring on MyUniverso refer to Table 1 MyUniverso Events.

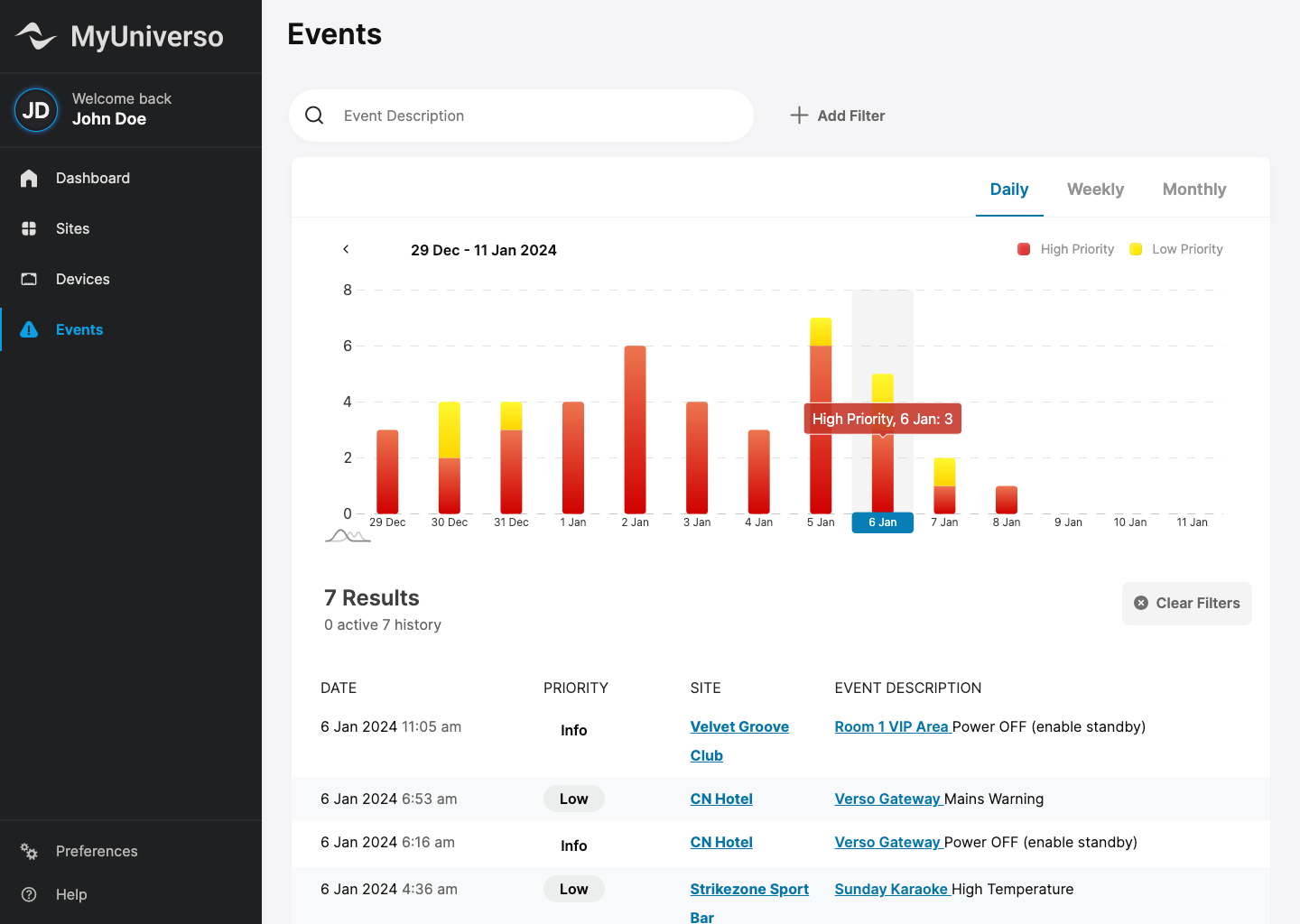

The graph provides a visual representation of data on a daily, weekly, or monthly basis. You can adjust the date range using the selector located on the top left side of the section.

The bar graphs are interactive, click on a single bar to filter data for that specific time range. When active events are detected, a filtering switch is displayed under the graph to opt out history and display data for only active events.

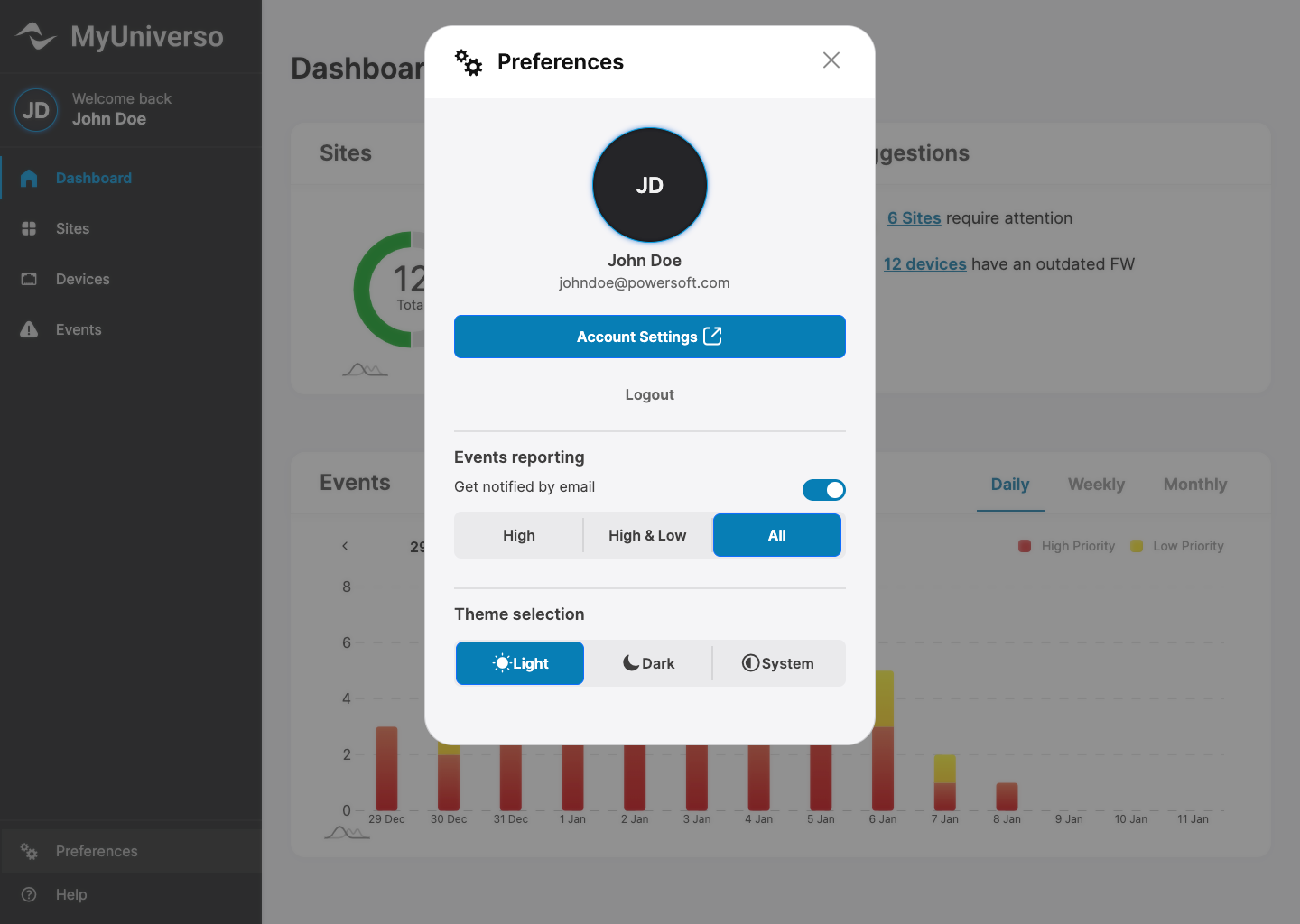

Access the preference settings by clicking on the dedicated button or on the username section in the sidebar. These settings allow you enable notifications and set their priority. Additionally, you can choose your preferred theme version, whether it's light, dark, or automatically inherited from your local operating system settings.

An external link to your MyPowersoft account page is provided.

Table 1. MyUniverso Events

Table 2. Devices Statuses shown on MyUniverso
